In a high-speed printing environment, the fastest web press is only as efficient as its delivery system. The HXDK520 Automatic Vertical Stacking and Bundling Machine is the definitive solution for large-run folding signature production. By automating the vertical collection, alignment, and strapping of signatures, it completes the “Intelligent Automatic Folding Process,” allowing facilities to operate with “no laborer required” at the delivery end.

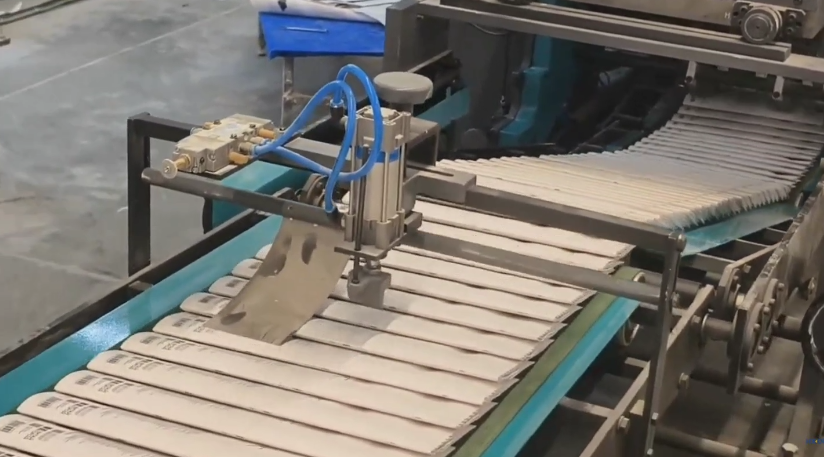

The transition from a folding machine to a pallet is traditionally a manual “catch-and-stack” operation. The HXDK520 disrupts this by connecting directly to the web press or paper sheet folding machine. As signatures exit the folder, the HXDK520 collects them vertically. This vertical orientation is critical; it uses gravity and specialized “flapping” mechanics to ensure the stack is perfectly neat. By pressing and flapping the stack, the machine removes trapped air—the primary cause of unstable signature piles—ensuring a compact core from the very first signature.
The “Intelligent” heart of the HXDK520 is its automated bundling station. Once a stack reaches the programmed count, the machine automatically inserts clapboards at both ends. This protection ensures that the outer signatures are not damaged by the straps. The stack is then subjected to an immense 3000N pressure, compressing the paper into a brick-like consistency. This high-pressure bounding is essential for long-term storage or transport, as it prevents the signatures from “warping” or losing their crisp fold lines.
Labor efficiency is the HXDK520’s most aggressive advantage. In a “large run” environment, a folding machine can produce tens of thousands of signatures per hour, usually requiring two to three workers just to keep up with the output. The HXDK520 offers a “fully automatic delivery,” meaning the machine handles the stacking, squaring, and strapping without human intervention. This reallocates human talent to quality control or machine oversight, significantly lowering the “cost-per-bundle” and improving workplace ergonomics by eliminating repetitive heavy lifting.
In conclusion, the HXDK520 Automatic Vertical Stacking and Bundling Machine is a “High-Performance” investment for the 2026 “Smart Factory.” It adheres to the highest standards of “high-quality and precision” by ensuring that every signature is preserved in its optimal state. By choosing the HXDK520, binderies can bridge the gap between their high-speed folders and their logistics department, achieving a truly seamless, intelligent, and autonomous production line.
