In the fast-evolving digital printing industry, flexibility, efficiency, and cost-effectiveness are the keys to staying competitive—whether you’re producing “Book of One” custom orders or high-volume digital books. Traditional finishing equipment often lacks the adaptability to handle variable formats, lightweight to heavy papers, and seamless integration between processes, leading to bottlenecks, wasted materials, and missed deadlines. Four advanced HDP digital finishing machines address these challenges head-on, delivering tailored solutions for every stage of digital post-press: the HDP-DPF Dual Plowfolder, HDP CS Cutter, HDP DSD Dual Star Wheel Delivery, and HDP UW Unwinder. Together, they form a flexible, integrated workflow that covers from paper unwinding and cutting to folding and book block delivery, empowering manufacturers to tackle diverse orders with precision and ease.
Engineered for economical digital book production, the HDP-DPF Dual Plowfolder is a game-changer for “Book of One” and short-run orders, offering unmatched format flexibility. Unlike rigid folding machines that require lengthy changeovers, this dual plowfolder ensures fully variable page counts and variable book spine lengths—even from book to book—adapting seamlessly to the unique needs of each order. Its semi-automatic changeover for different folding patterns takes less than 3 minutes, eliminating time-consuming setup and reducing downtime between jobs, a critical advantage for small-batch, custom production.
The HDP-DPF Dual Plowfolder also excels in paper versatility, thanks to its vacuum signature transport system. This advanced feature extends the paper range from 40gsm lightweight paper (ideal for delicate book pages) up to 180gsm bulky book papers, covering the majority of digital book printing needs. It supports folding of 2-4 layers of paper through multiple folding methods—including folding in half, core folding, and double folding—and can produce 4/6/8P signatures, making it a versatile solution for a wide range of book formats, from small booklets to full-sized paperbacks.
Complementing the HDP-DPF Dual Plowfolder, the HDP CS Cutter delivers high-performance cross-cutting of continuous paper webs into precise sheets. The paper web is fed to a cutting cylinder equipped with a rotary knife, ensuring clean, consistent cuts even at high speeds. This cutter handles an extensive range of paper weights, from lightweight to heavy paper, making it compatible with the same diverse paper range as the HDP-DPF Dual Plowfolder. It offers flexible integration options, functioning either online with a printer or offline with an unwinder, and supports 1-up to 4-up processing—adapting to different production scales and workflow setups.
A key efficiency feature of the HDP CS Cutter is its integrated dynamic diverter, which automatically diverts blank sheets and setup sheets away from the post-processing module. This eliminates wasted time and material, as blank or test sheets are not sent to downstream equipment, reducing errors and improving overall production efficiency. Whether you’re setting up the machine or handling runs with blank pages, this diverter ensures only quality, usable sheets move forward in the workflow.

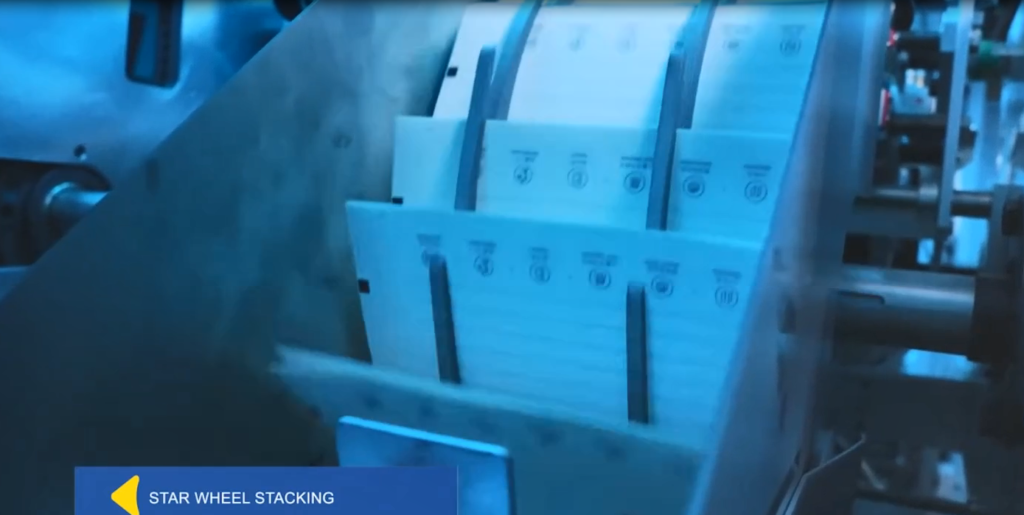

Following cross-cutting by the HDP CS Cutter, the HDP DSD Dual Star Wheel Delivery takes over to streamline book block assembly. This system applies side-glue to the cut 4-, 6-, or 8-page signatures, then uses rotating dual star wheels to stack and press multiple book blocks in a single cycle. Its biggest advantage is non-stop production, with speeds up to 200m/min and over 550 output cycles per hour—delivering exceptional productivity for high-volume orders. Characterized by modularity and flexibility, the HDP DSD Dual Star Wheel Delivery ensures simple, safe handling for downstream processing, integrating seamlessly with other HDP post-press equipment.
Powering the entire workflow from the start, the HDP UW Unwinder is the ideal solution for feeding today’s most advanced digital finishing systems. This center-shaft driven unwinder feeds paper rolls into downstream processes, including roll-to-stack, roll-to-fold, roll-to-plowfolder, spray gluing, and book block solutions—making it the backbone of a flexible digital finishing line. Standard features include an interactive touch screen display for easy operation, compatibility with multiple core sizes to accommodate different paper rolls, and an easy-to-use splice station that minimizes downtime when changing rolls.
Together, the HDP-DPF Dual Plowfolder, HDP CS Cutter, HDP DSD Dual Star Wheel Delivery, and HDP UW Unwinder form a complete, integrated digital finishing workflow. Each machine is designed to work seamlessly with the others, from unwinding paper to delivering finished book blocks, ensuring consistent quality and maximum efficiency. Whether you’re producing custom “Book of One” orders, short runs, or high-volume digital books, these HDP machines offer the flexibility, speed, and reliability you need to stay ahead in the competitive digital post-press market.
